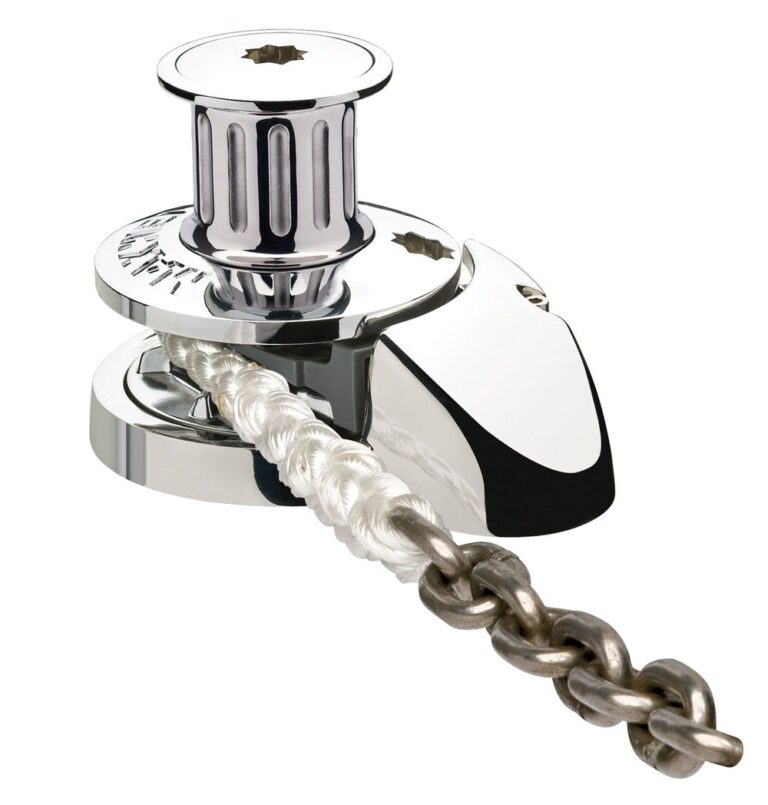

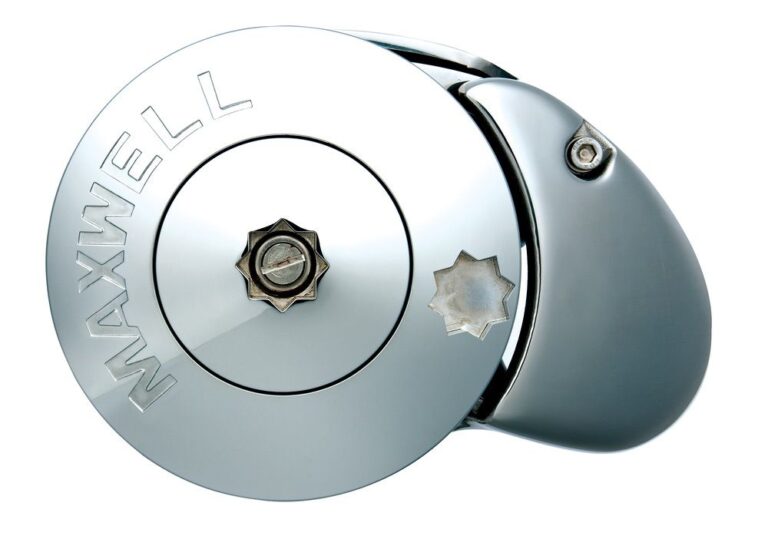

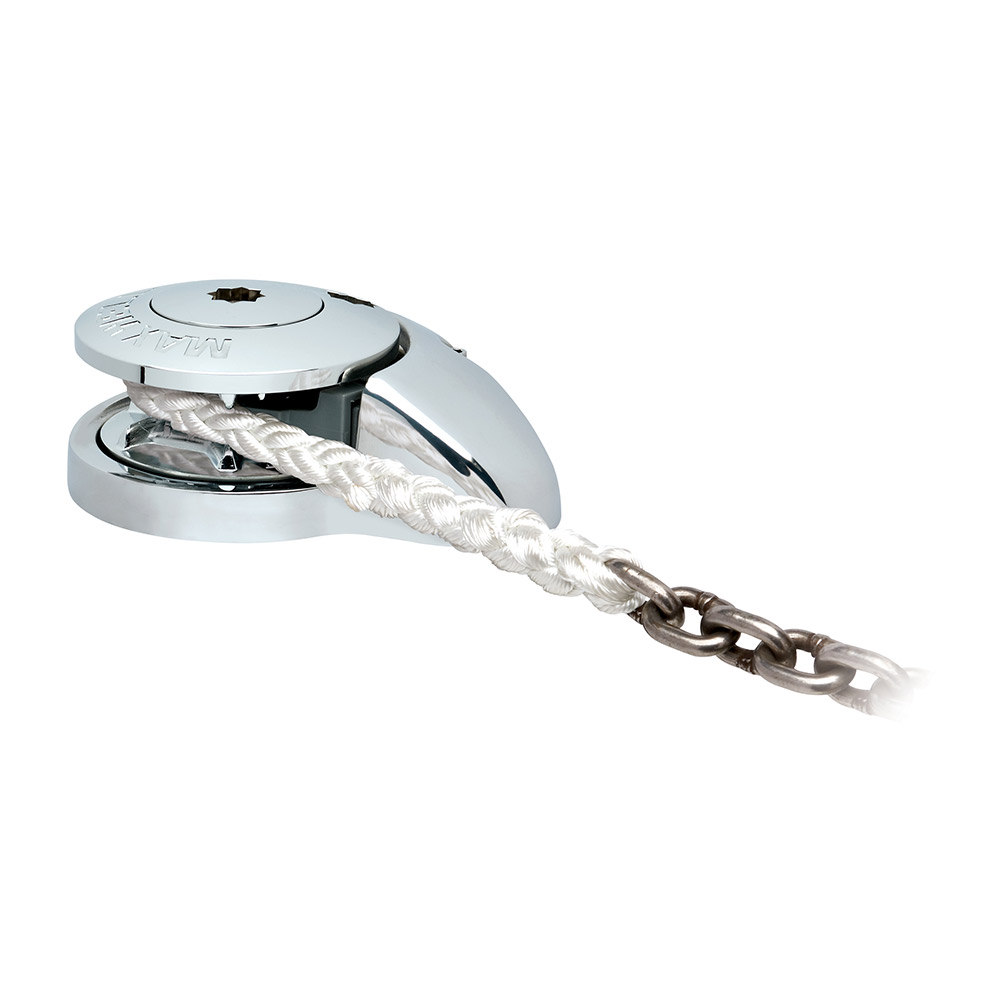

Maxwell RC8 Anchor Winch – Configurable for Boats up to 13m
Powerful, flexible, and engineered for serious anchoring.
The Maxwell RC8 is a reliable, high-performance windlass designed for boats up to 13 metres. With a full stainless steel body, powerful motor options, and Maxwell’s patented Wave Design™ chainwheel, it’s built to handle heavier tackle and tougher anchoring demands—whether you’re moored off Great Barrier Island or pulling up in Westhaven Marina.
Available in multiple configurations, the RC8 offers two motor sizes:
-
RC8-6 (600W) – for boats up to 9.5m, using 6–7mm chain
-
RC8-8 (1000W) – for boats up to 13m, using 6–7mm or 8mm chain
Both versions are available with 12V or 24V motors, and a choice of standard or extended deck clearance, allowing a tailored fit for your vessel.
Why It Works
-
Two power options: 600W for lighter setups, 1000W for heavier vessels
-
Handles rope/chain combinations or all-chain rodes
-
Available with 12V or 24V motor
-

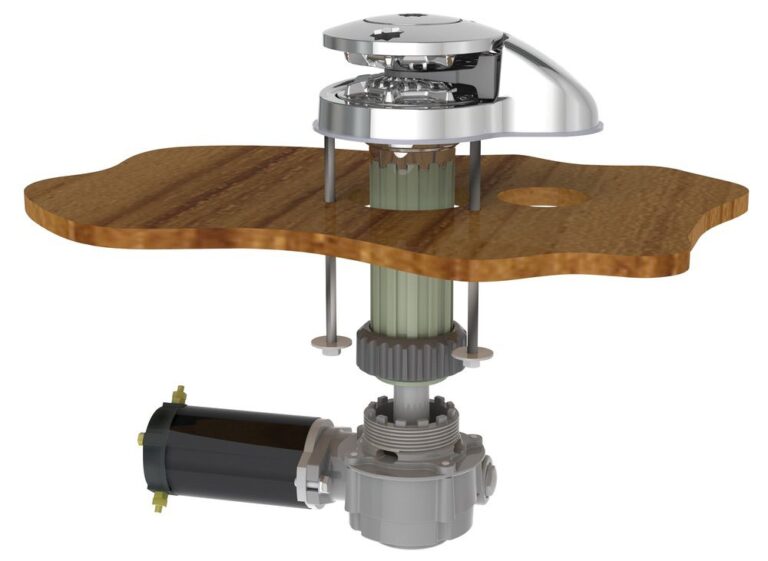

Choose from standard or extended deck clearance
-
RC8-8 accepts 6–7mm or 8mm short link chain
-
Fully sealed gearbox in oil bath for long service life
-
Wave Design™ chainwheel offers smoother, more secure operation than traditional systems
What’s Included
-
RC8 windlass body with selected motor and clearance
-

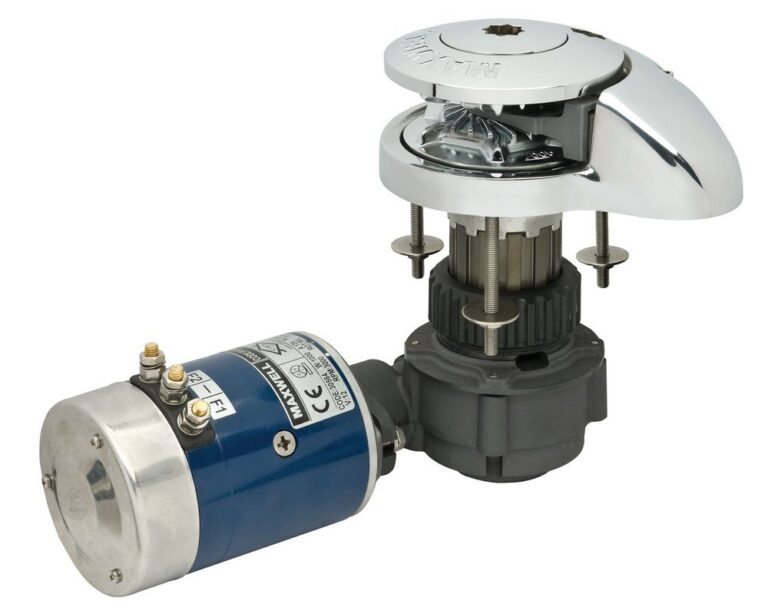

Integrated gearbox and motor
-
Dual direction solenoid
-
Emergency manual override handle
Note: Circuit breaker and control switches sold separately.
RC8 Technical Specs (by model)
| Model | Motor | Max Boat Length | Chain Size | Rope Size | Max Pull | Motor Voltage |
|---|---|---|---|---|---|---|
| RC8-6 | 600W | Up to 9.5m | 6–7mm (1/4″) | 12mm (1/2″) | 350kg | 12V or 24V |
| RC8-8 | 1000W | Up to 13m | 6–7mm or 8mm | 14–16mm (9/16″–5/8″) | 600kg | 12V or 24V |
Chain and rope speeds vary between 24–32m/min depending on configuration and load.
Proactive Marine Advantage
As a hands-on marine specialist based in West Auckland, we offer more than just product sales—we supply, install, and service Maxwell windlasses daily. Whether you’re fitting out a new boat or upgrading your anchoring system, we’ll help you choose the right configuration and install it to spec.
We know Auckland waters, and we know Maxwell gear.
Got a question about compatibility or stock availability? Get in touch or drop by—our advice is free, and always practical.
