Description

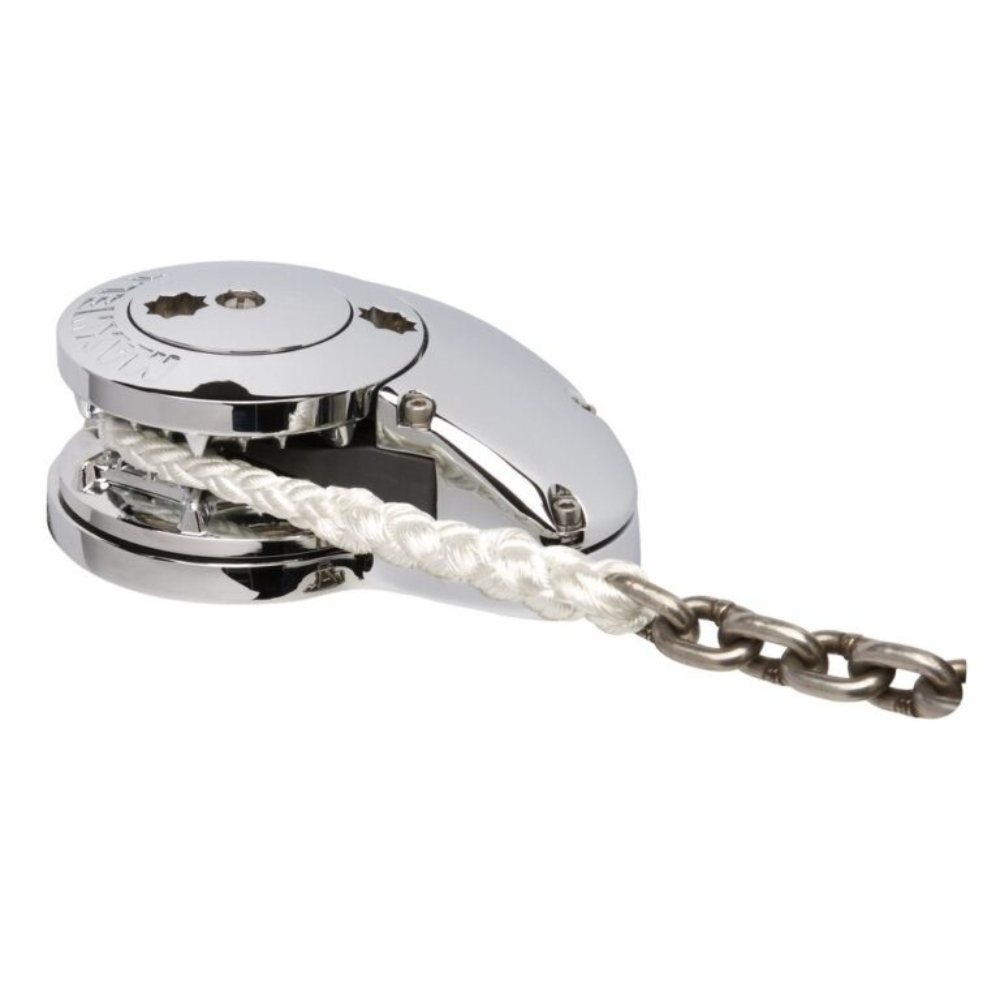

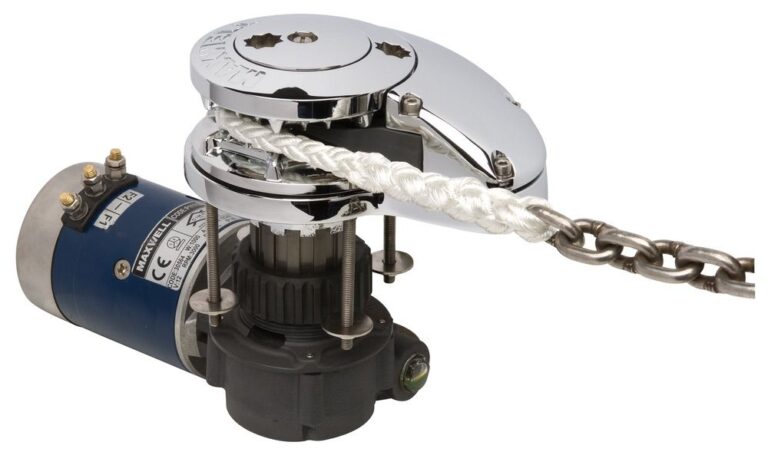

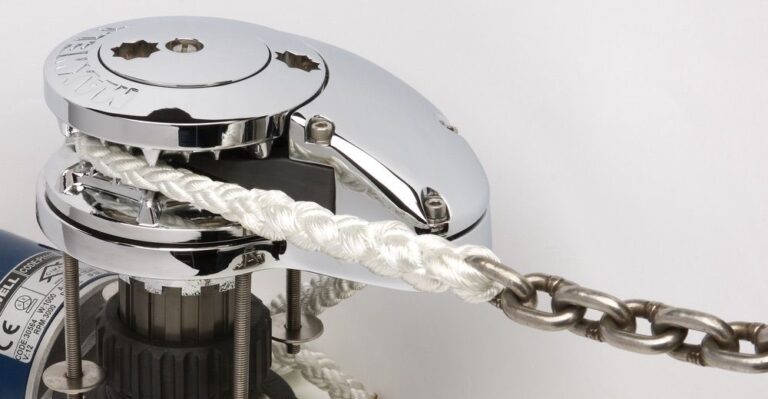

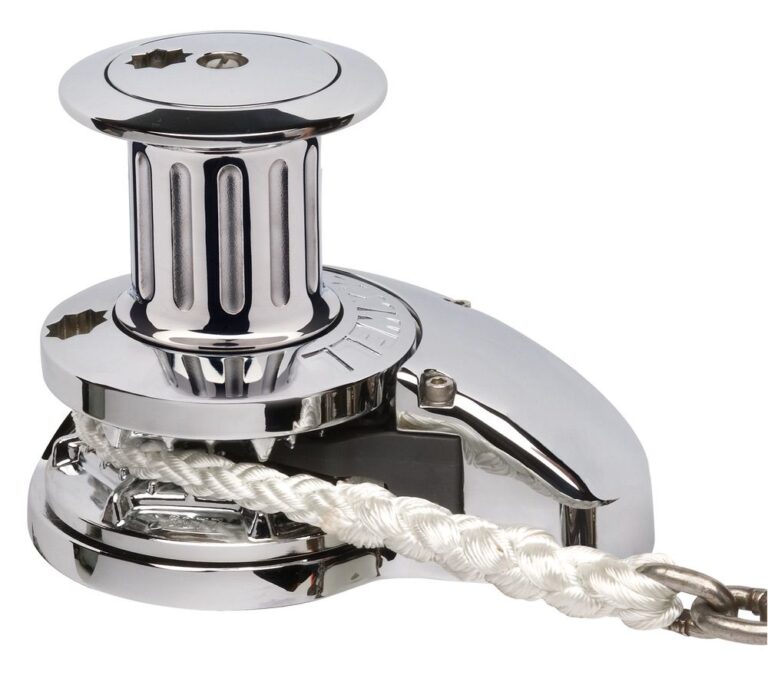

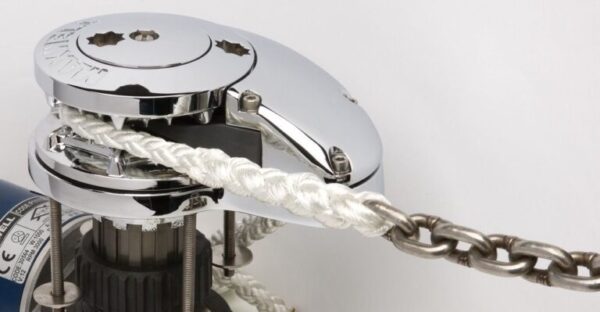

Maxwell RC10 Anchor Winch – Configurable for Boats up to 16m
Powerful, flexible, and engineered for demanding anchoring.
The Maxwell RC10 is a heavy-duty, high-performance windlass designed for boats up to 16 metres. Built with a full stainless steel body, powerful motor options, and Maxwell’s patented Wave Design™ chainwheel, it’s made to handle serious tackle and tough anchoring conditions—whether you’re dropping the pick at Great Barrier or hauling chain in the middle of the Gulf.
Available in multiple configurations, the RC10 series gives you two core models based on chain size:
-
RC10-8 – for 8mm (5/16″) chain, suitable for boats up to 13m
-
RC10-10 – for 10mm (3/8″) chain, suitable for boats up to 16m
Each model offers a range of motor and deck clearance options to suit your vessel layout.
Why It Works
-
Powerful motor options:
-
RC10-8 — 1000W (12V or 24V) — 1200W (12V only)
-
RC10-10 — 1200W (12V or 24V)
-
Hydraulic options available
-
48V motor upgrade available on request — contact us for pricing.
-
-
Available with standard or extended deck clearance (100mm or 150mm total deck clearance)
-
Suitable for rope/chain combinations or all-chain rodes
-
Fully sealed gearbox in oil bath for long service life
-
Wave Design™ chainwheel grips chain and rope smoothly and securely
RC10 Technical Specs (by model)
| Model | Motor Power | Max Boat Length | Chain Size | Rope Size | Max Pull | Motor Voltage Options |
|---|---|---|---|---|---|---|
| RC10-8 | 1000W or 1200W | Up to 13m | 8mm (5/16″) | 14–16mm (9/16″–5/8″) | 700kg | 12V, 24V, Hydraulic (48V upgrade available on request) |
| RC10-10 | 1200W | Up to 16m | 10mm (3/8″) | 14–16mm (9/16″–5/8″) | 850kg | 12V, 24V, Hydraulic (48V upgrade available on request) |
Chain and rope speeds vary depending on configuration and load.
What’s Included
-
RC10 windlass body with selected motor and clearance
-
Integrated gearbox and motor
-
Dual direction solenoid
-
Emergency manual override handle
Note: Circuit breaker and control switches sold separately.
