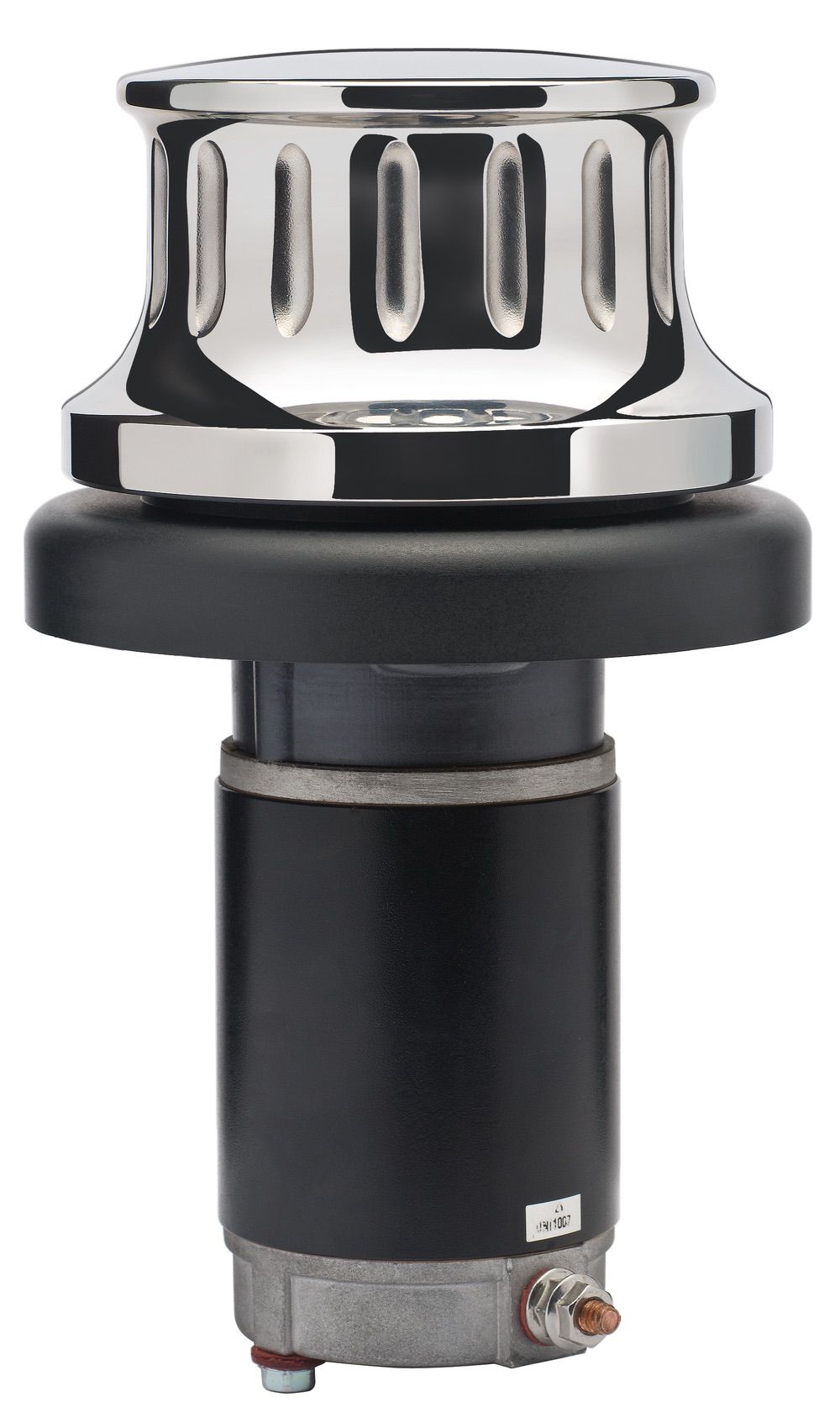

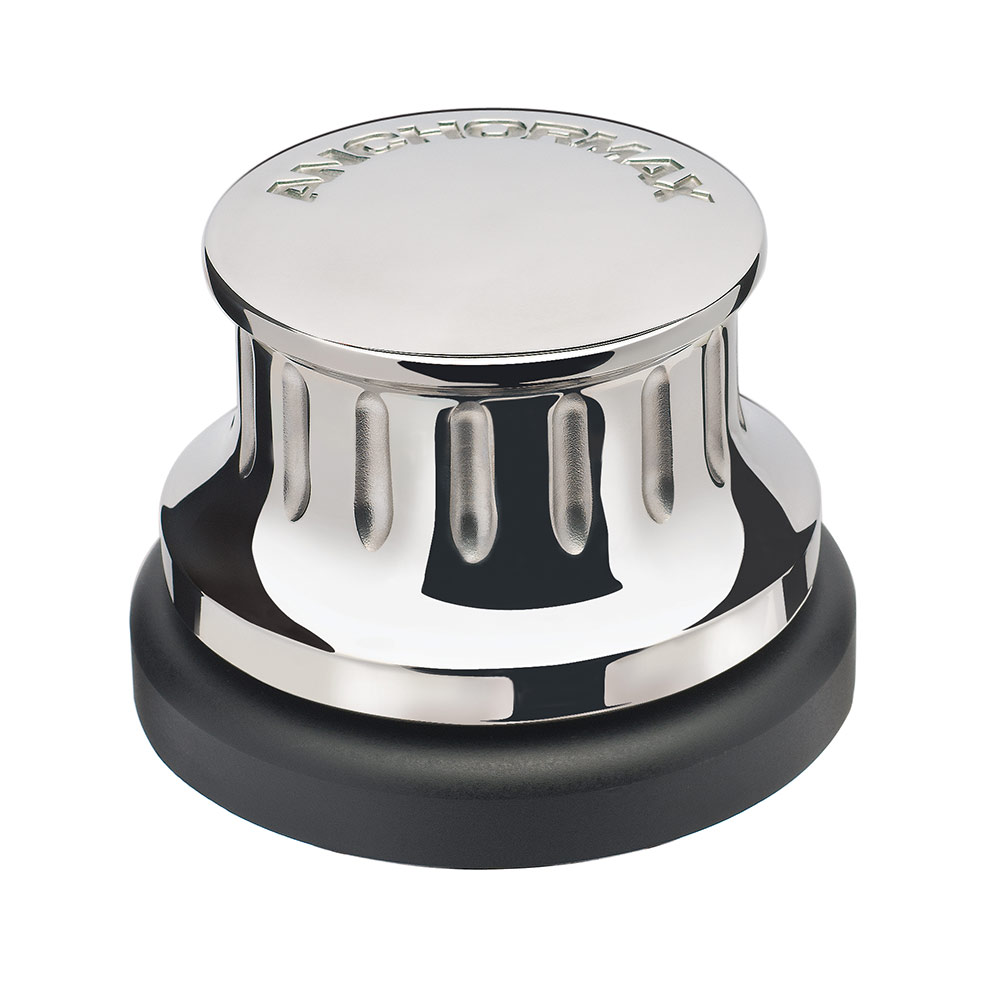

Maxwell AnchorMax Vertical Capstan – 12V or 24V
Compact, powerful, and versatile — ideal for boats up to 10m.
The Maxwell AnchorMax is a vertical capstan winch designed for rope only anchor rodes on boats up to 10 metres. Its compact design and high power-to-weight ratio make it suitable for various applications, including anchoring, pot hauling, and davit lifting.
Key Features:
-
Motor Options: 500W permanent magnet motor available in 12V or 24V.
-
Maximum Pull: Up to 386 kg (850 lbs).
-
Line Speed: Approximately 24 m/min (76 ft/min) under a 100 kg load.
-
Construction: Marine-grade alloy gear housing with a stainless steel drum.
-
Design: Vertical capstan with minimal below-deck intrusion.
-
Operation: Single-direction (clockwise) rotation.
-
Applications: Suitable for rope handling; not recommended for chain hauling.
Specifications:
-
Voltage: 12V or 24V
-
Motor Power: 500W
-
Maximum Pull: 386 kg (850 lbs)
-
Line Speed: 24 m/min (76 ft/min)
-
Weight: Approximately 5.7 kg (12.6 lbs)
-
Recommended Boat Length: Up to 10m (33 ft)
-
Circuit Protection: Requires an 80A breaker (not included)
What’s Included:
-
AnchorMax capstan winch with integrated motor and gearbox
-
Deck switch
-
Mounting hardware
-
Installation template and instructions
Proactive Marine Advantage:
As Auckland’s authorised Maxwell service agent, we offer expert advice, installation, and servicing. Whether you’re upgrading your anchoring system or setting up a new vessel, we ensure the right fit and reliable performance.
